Introduction
Designing a compact BLDC Motor Core for wearables involves intricate challenges that most engineers encounter. Many face issues such as size constraints, power efficiency, and heat management. User experiences reveal that like Jack, an engineer at a tech startup, combining a powerful core design with miniaturization not only enhances performance but also results in more versatile products. He mentioned how his team struggled to fit a standard motor into their latest fitness tracker, ultimately leading them to Yuma Precision for a tailored solution. The result? A 30% reduction in size while maintaining the same torque output—an absolute game-changer in wearables.
Required Preparation
Before diving into the design process for a BLDC motor core, equip yourself with the following:
- Detailed Tutorials: Access resources on motor design principles and core material properties. Look for case studies from Yuma Precision or similar entities.
- Materials: High-quality iron laminations, magnets, and copper wire are essential to ensure core efficiency and performance.
- Tools: You will need a 3D modeling software, soldering equipment, and measurement instruments like a torque sensor.
- Prerequisites: A fundamental understanding of motor design, materials science, and electrical engineering principles is required.
Step-by-Step Guidance
1. Define Specifications
Begin by outlining the specific requirements of the wearable, including size, weight, and intended use case. For example, a fitness tracker may need a torque of at least 0.5 Nm to handle physical activity.
2. Select Core Materials
Research and choose the right material for your motor core. Steel or silicon steel laminations are highly recommended due to their durability and magnetic properties. Yuma Precision offers a comprehensive range of robust lamination materials that maximize performance.

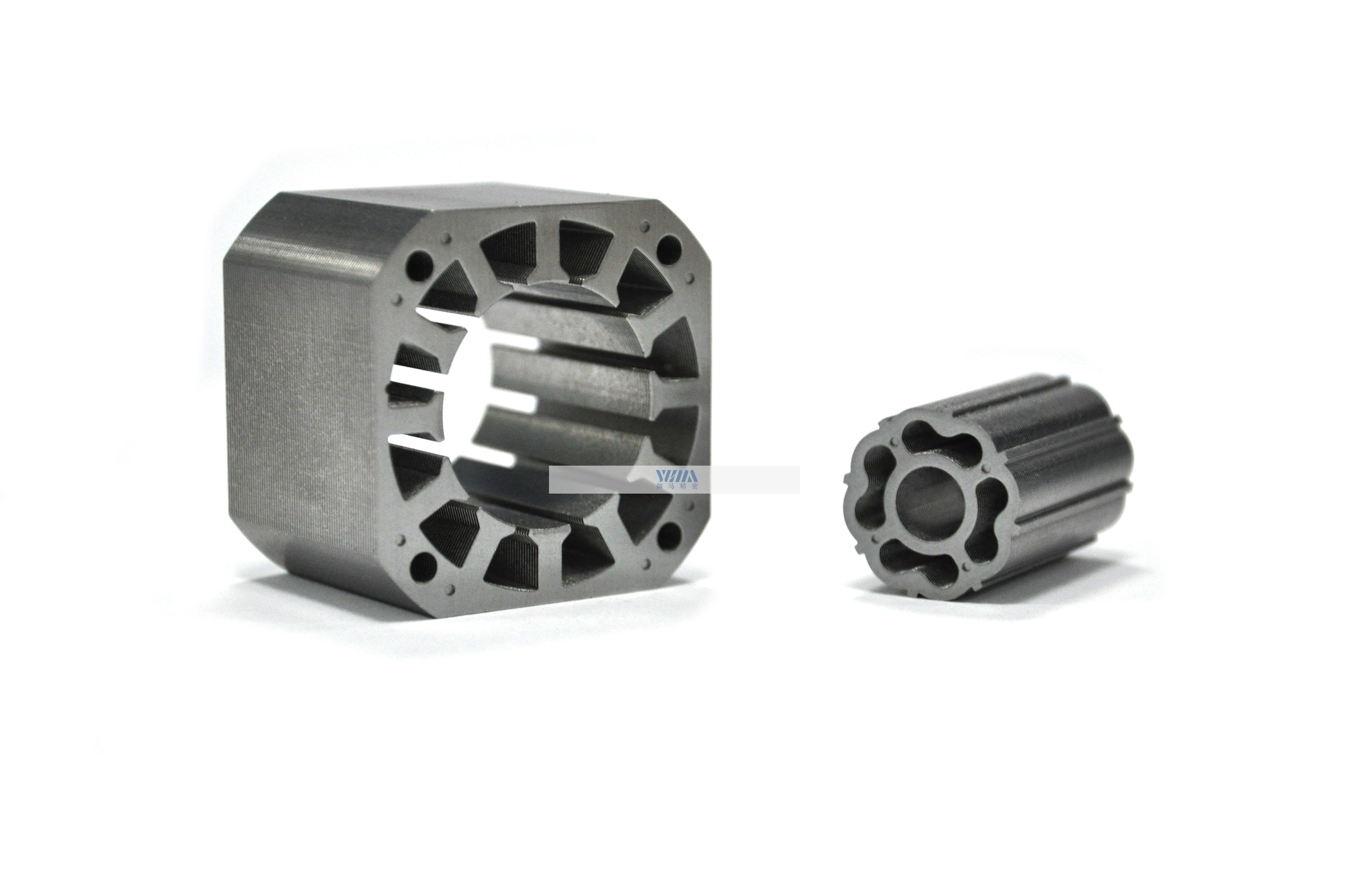

3. Design the Core
Utilize 3D modeling software to design the motor core. Ensure dimensions allow for a compact design yet provide adequate space for windings and magnet placement. Utilize a design that minimizes air gaps to enhance efficiency, ideally less than 0.1 mm between laminations.
4. Wind the Coils
Carefully wind copper wire around the core to form the coils. Take care to maintain an even distribution, optimizing for space efficiency to reduce size by up to 20% without compromising the number of turns.
5. Assemble the Motor
After winding, assemble the motor by placing the magnets into their designated slots and securely fixing all components. Ensure that the assembly is compact but easily accessible for maintenance or upgrades.
6. Testing and Calibration
Test the motor using a torque sensor to verify its output against the specified 0.5 Nm target. Adjust the winding or materials if output is below expectations.
7. Final Adjustments
Ensure that the compact motor fits within the designated wearable device prototype. Run stress tests to evaluate performance under typical usage scenarios.
Common Errors and Solutions
Below are some frequent pitfalls encountered when designing a compact BLDC motor core along with their solutions:
- Overheating: This can occur if there isn’t sufficient cooling. Solution: Integrate heat sinks or consider using cooler-running materials.
- Poor Torque Output: Often caused by insufficient winding or wrong core material. Solution: Reassess material choices and ensure proper winding techniques.
- Size Miscalculations: Common when rushing the design. Solution: Double-check all measurements against specifications before final assembly.
Summary and Suggestions
Designing a compact BLDC motor core for wearables is not just about making it small; it’s about optimizing performance without sacrificing efficiency. By following the structured approach above, you can solve common design challenges. Always stay updated on materials and innovations from leaders like Yuma Precision, as advancements in motor tech can significantly impact your designs.
FAQ
Q: What is the ideal size for a BLDC motor core in wearables?
A: Generally, the size should be minimized without compromising the torque delivered. Aim for a core diameter that is under 20 mm for optimal integration.
Q: How can I improve the efficiency of my BLDC motor?
A: Optimize your design for minimal air gaps, choose high-quality materials, and ensure proper winding techniques to enhance performance.
Q: Where can I find high-quality lamination materials?
A: Brands like Yuma Precision provide a range of high-quality lamination materials specifically designed for motor applications.
