Stepper motors are widely used in equipment that requires accurate positioning, repeatable movement and controlled speed. Behind this performance is the stepper motor core, which forms the magnetic circuit of the motor and directly affects torque, efficiency, temperature rise, noise and motion stability.
For motor manufacturers and industrial equipment suppliers, selecting a suitable stepper motor core is not simply a matter of matching dimensions. The lamination material, slot structure, tooth geometry, stacking accuracy and manufacturing process must all correspond to the motor’s operating requirements.
What Is a Stepper Motor Core?

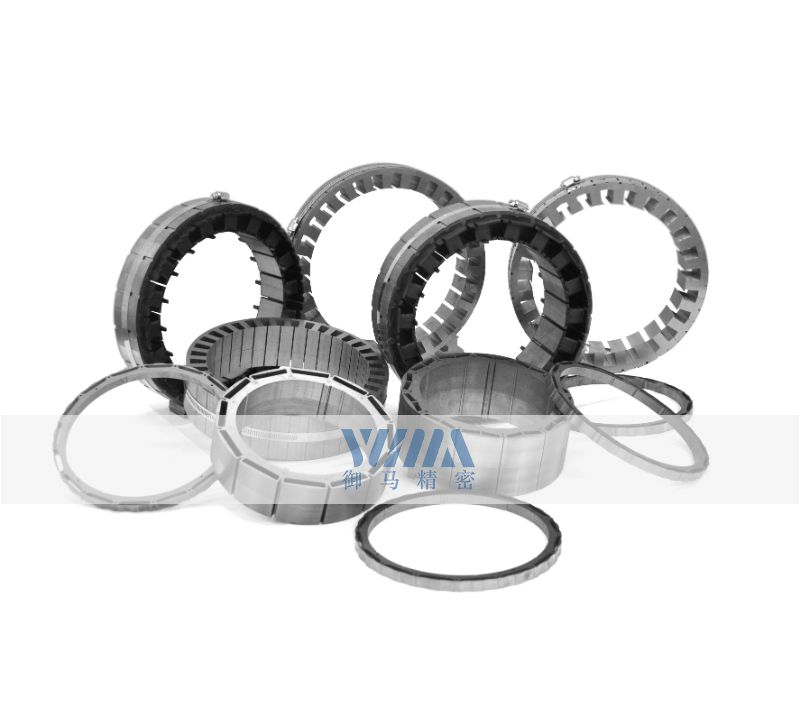

A stepper motor core generally consists of laminated stator and rotor components manufactured from electrical steel. The laminations are stacked to form the magnetic structure of the motor.
The stator core contains teeth and slots for the windings, while the rotor core interacts with the magnetic field generated by the stator. As electrical pulses are supplied to the windings, the rotor moves in fixed angular steps.
The dimensional accuracy of the stator and rotor laminations influences:
Step angle consistency
Holding and running torque
Positioning accuracy
Motor vibration and noise
Temperature rise
Overall operating stability
For this reason, the stepper motor core should be designed and manufactured according to the complete motor specification rather than purchased only by frame size.
Common Applications of Stepper Motor Cores
Stepper motor cores are used in industrial and commercial equipment that requires controlled incremental movement.
Typical applications include:
CNC machines and positioning tables
Packaging and labeling equipment
3D printers
Textile machinery
Laboratory automation systems
Medical diagnostic equipment
Industrial robots
Vending machines
Office automation equipment
Camera and optical positioning systems
Valves, pumps and dispensing equipment
Different applications place different demands on the motor core. A laboratory analyzer may prioritize smooth, quiet operation, while an industrial positioning system may require higher holding torque and frequent start-stop performance.
Important Stepper Motor Core Design Factors
Stator Slot and Tooth Geometry
The number, width and shape of stator teeth affect the magnetic circuit and winding space. These features should be matched to the motor phase configuration, required torque and step angle.
Narrow teeth, small slot openings and complex geometries require stable tooling and accurate stamping control.
Rotor Structure
Stepper motors may use different rotor designs, including permanent magnet, variable reluctance and hybrid structures. Hybrid stepper motors often require detailed rotor tooth geometry to achieve small step angles and accurate positioning.
The rotor outside diameter, tooth profile, shaft hole and concentricity should be controlled carefully to maintain a consistent air gap.
Electrical Steel Material
Stepper motor laminations are normally manufactured from electrical steel selected according to motor performance, operating frequency and cost requirements.
Material selection can influence magnetic loss, heat generation and motor efficiency. Buyers should specify the required steel grade, lamination thickness and coating requirements when available.
Lamination Thickness
Thinner laminations can help reduce eddy-current losses, particularly in motors operating at higher electrical frequencies. However, thinner material may increase stamping and tooling requirements.
The appropriate thickness should balance performance, mechanical strength, production efficiency and project budget.
Stack Height
The stator and rotor stack height affects the motor’s magnetic capacity and torque output. It must also match the available installation space and shaft design.
Consistent stacking is important because variation in stack height may affect assembly, air-gap alignment and final motor performance.
Available Core Assembly Methods
Stepper motor laminations can be supplied in different forms according to the customer’s production process.
Common options include:
Loose stator and rotor laminations
Interlocked lamination stacks
Welded motor cores
Bonded motor cores
Interlock-free lamination structures
Loose laminations offer flexibility for customers performing their own stacking and assembly. Interlocked cores are suitable for efficient volume production, while bonding or welding may be considered when increased stack stability or specific vibration characteristics are required.
The assembly method should be confirmed during the design and sample-validation stage.
Prototype Development Before Mass Production
Developing samples before opening a mass-production progressive die can reduce project risk.
Depending on the required quantity and validation purpose, stepper motor core samples may be produced through laser cutting, proofing dies or engineering dies.
Samples can be used to verify:
Stator and rotor dimensions
Winding compatibility
Air-gap consistency
Assembly feasibility
Holding torque
Running torque
Step accuracy
Noise and vibration
Temperature rise
Once the motor design is approved, progressive tooling can be developed for stable, high-volume stamping.
What Information Should Buyers Provide?
To obtain an accurate quotation, buyers should provide as much technical information as possible, including:
Stator and rotor drawings
Motor type and phase configuration
Frame size
Number of stator and rotor teeth
Electrical steel grade
Lamination thickness
Core stack height
Shaft-hole dimensions
Required tolerances
Core assembly method
Sample quantity
Estimated annual demand
Details about torque, speed, voltage, step angle and intended application can also help the manufacturer evaluate production feasibility.
How to Select a Stepper Motor Core Manufacturer
A qualified stepper motor core supplier should provide more than basic stamping services. Buyers should evaluate whether the manufacturer can support tooling development, sample production, precision stamping, stacking, inspection and volume manufacturing.
Important capabilities include:
Experience with complex stator and rotor geometries
In-house die design and development
Multiple prototyping methods
Stable burr and dimensional control
Consistent stack-height management
Inspection of teeth, slots, concentricity and shaft holes
Support for small-batch validation and mass production
Clear engineering communication
Selecting a supplier with integrated tooling and stamping capabilities can reduce communication gaps and make the transition from prototype to production more efficient.
Conclusion
The stepper motor core is a critical component that influences positioning accuracy, torque, temperature, noise and motor reliability. For B2B buyers, the best solution is usually a customized core developed according to the motor structure, operating requirements and expected production volume.
Yuma Precision supports custom stepper motor stator and rotor laminations from drawing review and sample development to die manufacturing, precision stamping and mass production. Buyers can submit their motor drawings, material requirements and annual demand for technical evaluation and quotation.
