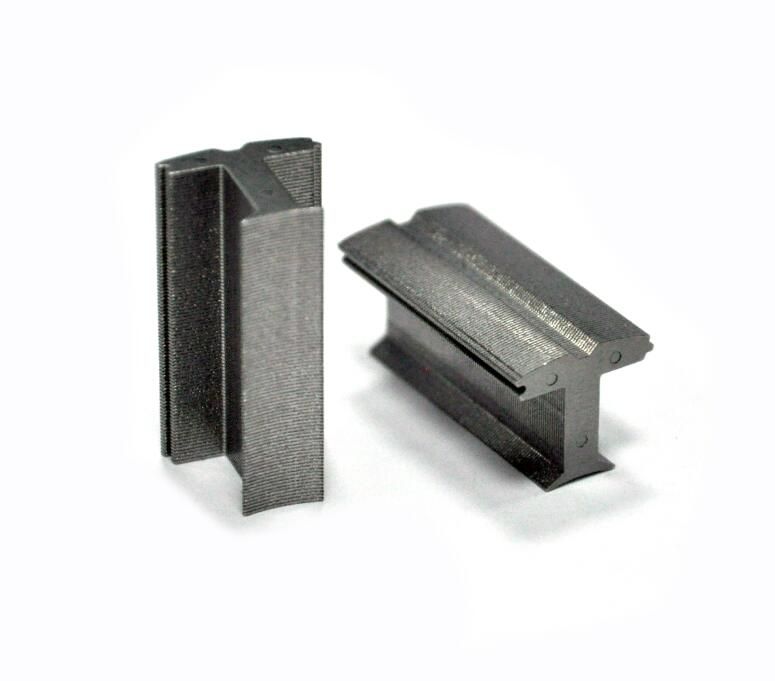

Servo motors are widely used in industrial automation, robotics, CNC machines, packaging equipment and precision positioning systems. These applications require fast response, accurate control and stable torque.
Although controllers, encoders and windings are important, the servo motor core also plays a major role in determining motor performance. The structure and manufacturing quality of the stator and rotor cores can affect efficiency, torque output, temperature rise, vibration and positioning accuracy.
For motor manufacturers and equipment buyers, understanding the importance of the servo motor core can help reduce development risks and improve the reliability of the final drive system.
Why Does the Servo Motor Core Affect Torque?
The servo motor core forms the magnetic circuit that transfers electromagnetic force between the stator and rotor.
The stator tooth shape, slot structure, yoke thickness and rotor geometry determine how magnetic flux flows through the motor. Poorly designed or inaccurately manufactured laminations may lead to uneven magnetic distribution and reduced torque output.
A properly manufactured servo motor core can help provide:
Stable torque at different speeds
Strong starting and holding torque
Smooth acceleration and deceleration
Consistent response under changing loads
Better use of the winding and magnet system
For applications such as robotic joints and CNC feed systems, stable torque is essential for accurate and repeatable movement.
Why Is Dimensional Accuracy Important?
Servo motors usually operate with a small air gap between the stator and rotor. This air gap must remain consistent around the entire circumference of the motor.
Variations in the stator inner diameter, rotor outer diameter or core concentricity can create an uneven air gap. This may result in unstable magnetic force, vibration, noise and reduced motor efficiency.
Precision motor laminations help control:
Stator and rotor diameter
Slot and tooth dimensions
Shaft-hole position
Core concentricity
Stack height
Lamination flatness
Burr height
Accurate stamping and stacking are especially important for compact servo motors, where small dimensional differences can have a noticeable effect on performance.
Why Does Electrical Steel Selection Matter?
Servo motor cores are normally manufactured from electrical steel laminations. The material grade and lamination thickness influence magnetic loss, heat generation and motor efficiency.
Lower core loss can help reduce unnecessary energy consumption and temperature rise. This is important for servo motors that operate at high speed or undergo frequent acceleration and deceleration.
When selecting electrical steel, motor manufacturers should consider:
Rated motor speed
Electrical frequency
Torque requirements
Efficiency targets
Operating temperature
Mechanical strength
Material cost
Using a higher-grade material does not automatically guarantee the best result. The material must be matched to the motor design and operating conditions.
Why Are Thin Laminations Used?
Electrical steel cores are divided into thin laminations to reduce eddy-current losses.
Thinner laminations can improve high-frequency magnetic performance and help reduce heat generation. However, thin materials may require more precise tooling, better flatness control and a more stable stamping process.
The suitable lamination thickness depends on the required balance between:
Motor efficiency
Operating speed
Production cost
Mechanical strength
Tooling complexity
Core stacking efficiency
Servo motor manufacturers should therefore evaluate lamination thickness during the design stage rather than treating it as a standard purchasing specification.
Why Does Core Stacking Affect Motor Stability?
Individual stator and rotor laminations must be assembled into a stable stack. Inconsistent stacking can affect the final core height, alignment and structural strength.
Common servo motor core assembly methods include:
Loose laminations
Interlocked cores
Welded cores
Bonded cores
Interlock-free lamination stacks
Interlocking is suitable for efficient mass production, while bonding may be considered when reducing mechanical connection features or vibration is important. Welding provides structural strength but must be controlled to limit its effect on magnetic performance.
The correct stacking method depends on the motor structure, production volume and performance requirements.
Why Can the Servo Motor Core Affect Noise and Vibration?
Servo motors are frequently used near operators, precision instruments or automated production lines. Excessive noise and vibration can reduce equipment accuracy and shorten component life.
Motor core problems that may contribute to vibration include:
Uneven lamination dimensions
Excessive burrs
Poor stack alignment
Inconsistent air gaps
Rotor imbalance
Weak lamination connections
Uneven magnetic flux
Precision stamping and controlled stacking help create a more uniform magnetic circuit and mechanically stable core.
This is particularly important for medical equipment, collaborative robots, semiconductor machinery and laboratory automation systems.
Why Should Samples Be Tested Before Mass Production?
A servo motor core may look correct on a drawing but still require adjustments after assembly and performance testing.
Before investing in progressive tooling, manufacturers can use laser-cut laminations, proofing dies or engineering dies to produce initial samples.
Prototype cores can be used to evaluate:
Winding compatibility
Stator and rotor assembly
Air-gap consistency
Torque performance
Motor speed
Temperature rise
Noise and vibration
Positioning response
Manufacturing feasibility
Testing samples before mass production helps identify design or process problems early and reduces the cost of tooling changes.
Why Work With a Custom Servo Motor Core Manufacturer?
Servo motors vary significantly in diameter, slot number, power, speed, stack height and rotor structure. Standard motor cores may not meet the requirements of specialized equipment.
A custom servo motor core manufacturer can produce laminations according to the customer’s:
Stator and rotor drawings
Slot and pole configuration
Electrical steel specification
Lamination thickness
Stack height
Shaft-hole structure
Dimensional tolerances
Assembly method
Production quantity
Manufacturers with integrated die development, stamping and core assembly capabilities can also support the project from prototype testing through volume production.
Conclusion
The servo motor core is not only a structural component. It directly influences torque, efficiency, temperature, noise, vibration and control accuracy.
For industrial buyers, a reliable servo motor core should combine suitable electrical steel, precise lamination geometry, consistent stacking and stable mass-production processes.
Yuma Precision provides custom servo motor stator and rotor cores, including drawing review, sample development, die manufacturing, precision stamping and volume production. Customers can submit their motor drawings, material requirements and estimated demand for technical evaluation.
