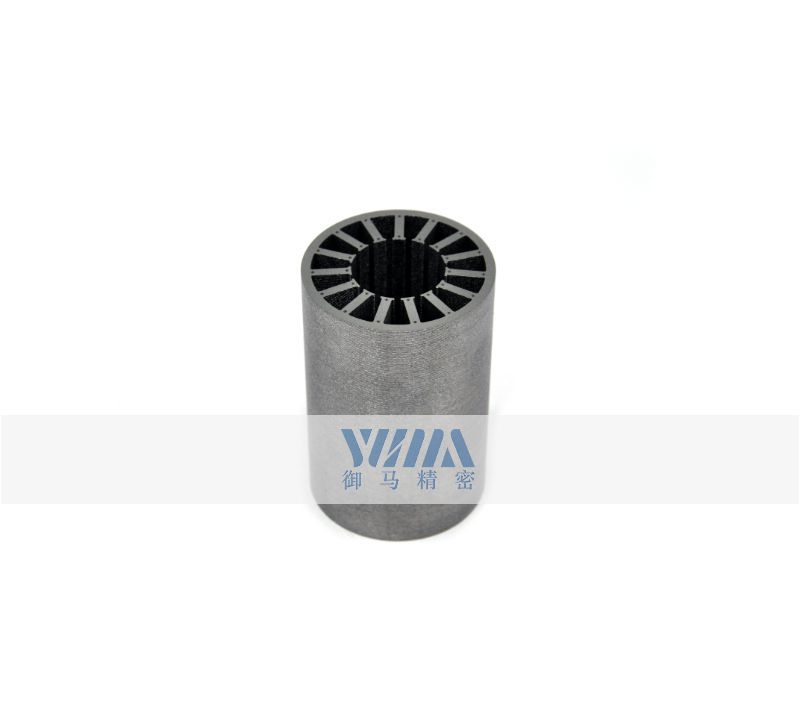

Medical equipment requires motors that deliver precise movement, stable operation and consistent performance throughout repeated operating cycles. Yuma Precision provides customized stator and rotor cores for motors used in medical imaging systems, surgical robots, oxygen pumps, rehabilitation equipment and laboratory instruments.
Our Motor Core Solutions for Medical Equipment can be developed according to the required motor type, dimensions, slot design, stack height, electrical steel material and core assembly method. From sample development and tooling to precision stamping and core assembly, we support medical equipment manufacturers throughout product development and volume production.
Motor Core Applications in Medical Equipment
Electric motors perform positioning, rotation, pumping and motion-control functions in many types of medical devices. The dimensional consistency and magnetic performance of the motor core directly influence motor efficiency, temperature rise, vibration, noise and motion accuracy.
Yuma Precision motor cores can be applied to the following medical equipment.
Medical Imaging Systems
Medical imaging systems require precise and repeatable movement to support accurate scanning and positioning.
In X-ray equipment, motors may control the movement and positioning of the X-ray tube, detector or examination table. Precisely manufactured stator and rotor cores help the motor achieve smooth acceleration, stable positioning and repeatable movement.
In MRI and other scanning equipment, motors can be used in patient tables, scanning mechanisms and auxiliary positioning systems. Motor core design must be matched carefully to the operating environment, motor structure and motion requirements of the equipment.
Surgical and Treatment Equipment
Surgical robots and automated treatment systems depend on highly controlled motor movement. Motors may be used to drive robotic joints, instrument positioning mechanisms and other motion-control components.
Customized motor laminations help support:
Smooth and accurate robotic arm movement
Stable torque output at different speeds
Reduced motor vibration and operating noise
Compact motor structures for limited installation spaces
Consistent performance during repeated operating cycles
Yuma Precision can manufacture customized stator and rotor cores for servo motors, stepper motors, BLDC motors, permanent magnet motors and frameless motors used in medical automation systems.
Medical Oxygen Pumps and Respiratory Equipment
Medical oxygen pumps, oxygen concentrators and respiratory support equipment require motors capable of continuous and stable operation. Motor efficiency, heat generation, vibration and noise are important considerations, especially for equipment used near patients.
A properly designed motor core can help improve magnetic performance and support smooth pump operation. Core dimensions, slot geometry, lamination material and stacking method can be customized according to the motor’s speed, torque, operating time and installation space.
Rehabilitation and Physiotherapy Equipment
Rehabilitation robots, physiotherapy systems and motorized training equipment use electric motors to provide controlled force and repeatable movement.
Motor cores for these applications should support:
Smooth starting and stopping
Controlled speed and torque
Repeatable positioning
Low vibration during patient contact
Reliable operation under frequent load changes
Yuma Precision develops custom motor cores for compact drive systems used in rehabilitation robots, powered exercise equipment and automated physiotherapy devices.
Medical Laboratory Equipment
Centrifuges, automated analyzers, sample-processing instruments and other laboratory equipment use motors for high-speed rotation, sample movement and automated positioning.
These applications may require high rotational stability, efficient heat control and precise dimensional consistency. Customized rotor and stator laminations help motor manufacturers balance speed, torque, efficiency and operating noise for different laboratory instruments.
Performance Requirements for Medical Equipment Motor Cores
Medical device manufacturers should evaluate the motor core based on the complete operating requirements of the equipment rather than dimensions alone.
Precise Dimensional Consistency
Accurate inner diameter, outer diameter, slot geometry, stack height and concentricity help maintain a consistent air gap between the stator and rotor. This is important for stable motor performance and controlled movement.
Low Core Loss and Temperature Rise
Selecting suitable electrical steel and lamination structures can help reduce magnetic losses and unnecessary heat generation. This is especially important for compact medical devices and equipment designed for extended operation.
Low Vibration and Noise
Motor noise can be influenced by lamination accuracy, stacking consistency, slot design and the selected core connection method. Bonded motor cores may be considered for applications requiring increased structural integrity and reduced vibration.
Smooth and Stable Motion
Imaging systems, robotic equipment and automated analyzers require predictable motor response. A customized motor core helps the motor achieve stable torque, smooth rotation and repeatable positioning.
Compact Motor Design
Portable and space-constrained medical devices often require motors with smaller dimensions and higher power density. Stator and rotor geometry can be optimized according to the available installation space and required output.
Custom Stator and Rotor Cores for Medical Devices
Yuma Precision supports customized medical equipment motor cores according to customer drawings, motor specifications or application requirements.
Available customization factors include:
Stator and rotor outer and inner diameters
Slot number and slot geometry
Lamination thickness and electrical steel grade
Stack height and stacking tolerance
Shaft hole and mounting structure
Interlocking, welding, bonding or loose lamination assembly
Prototype, sample and mass-production tooling
Component integration requirements
The appropriate motor core structure depends on the motor type, required torque, rotational speed, duty cycle, operating temperature, noise target and production volume.
Motor Core Development Process
Yuma Precision supports medical motor projects through a structured development process.
Application and motor requirement evaluation
Drawing and manufacturability review
Material and stacking method selection
Prototype or proofing die development
Sample stamping and dimensional inspection
Performance verification by the customer
Progressive die development for volume production
Stamping, stacking, assembly and quality control
This process helps identify manufacturing risks during the sample stage and supports a more stable transition to mass production.
Why Choose Yuma Precision Motor Core Solutions for Medical Equipment?
Yuma Precision specializes in the development and manufacturing of motor stator and rotor lamination cores and tooling. Our capabilities cover mold development, sample production, motor core stamping, multiple core connection methods, component integration and quality control.
For medical equipment motor projects, we provide:
Customized motor cores based on drawings and application requirements
Support for stepper, servo, BLDC, permanent magnet and frameless motors
Sample development before volume production
Multiple lamination stacking and connection options
Precision tooling and progressive stamping support
Quality inspection throughout the manufacturing process
Production support for both specialized and large-volume projects
Discuss Your Medical Motor Core Project
