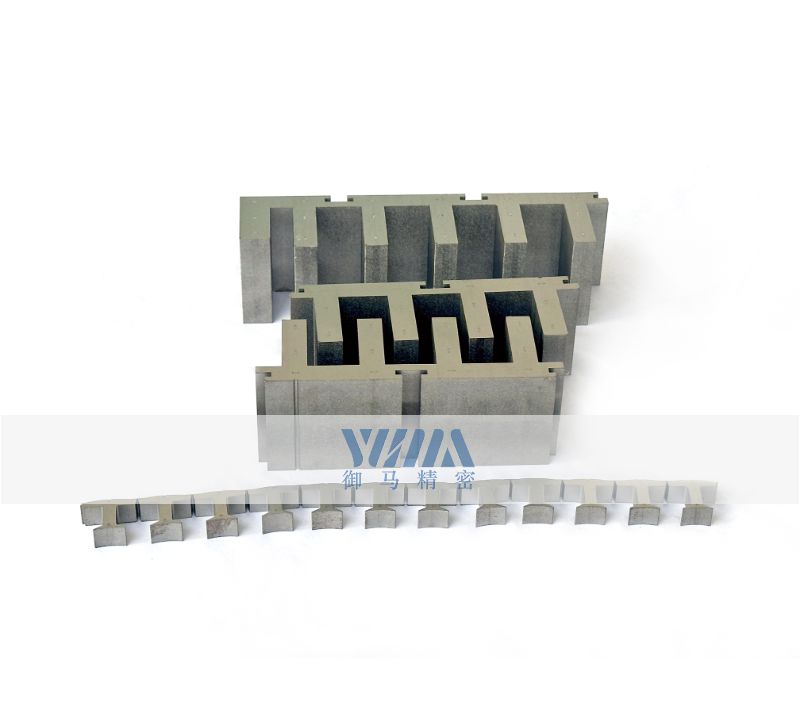

The linear motor core is a key component of linear motors, with a structure different from traditional rotary motors. Typically made from high-performance silicon steel laminations, it improves magnetic conductivity and reduces losses. Designed for high precision and reliability, it enables precise linear motion control and is widely used in precision positioning systems and automated production lines.
YUMA provides customized linear motor core and lamination solutions for high-precision motion applications.
Our linear motor cores are manufactured with advanced stamping and stacking technologies to achieve excellent dimensional accuracy, magnetic performance, and operational stability.
Designed for applications requiring fast response, precise positioning, and smooth movement, YUMA supports OEM customers with reliable linear motor core manufacturing solutions.
Key Features of YUMA Linear Motor Core
Optimized Magnetic Circuit Design
Linear motors rely heavily on magnetic field distribution.
YUMA supports customized:
● Tooth structure
● Slot geometry
● Lamination design
● Magnetic performance requirements
High Dimensional Accuracy
Linear motion systems require strict manufacturing tolerances.
YUMA ensures:
● Consistent lamination size
● Accurate stacking
● Stable core geometry
Customized Length & Structure
Unlike rotary motor cores, linear motor cores often require customized dimensions according to travel distance and machine design.
YUMA supports:
● Custom core length
● Different stacking heights
● Special structural designs

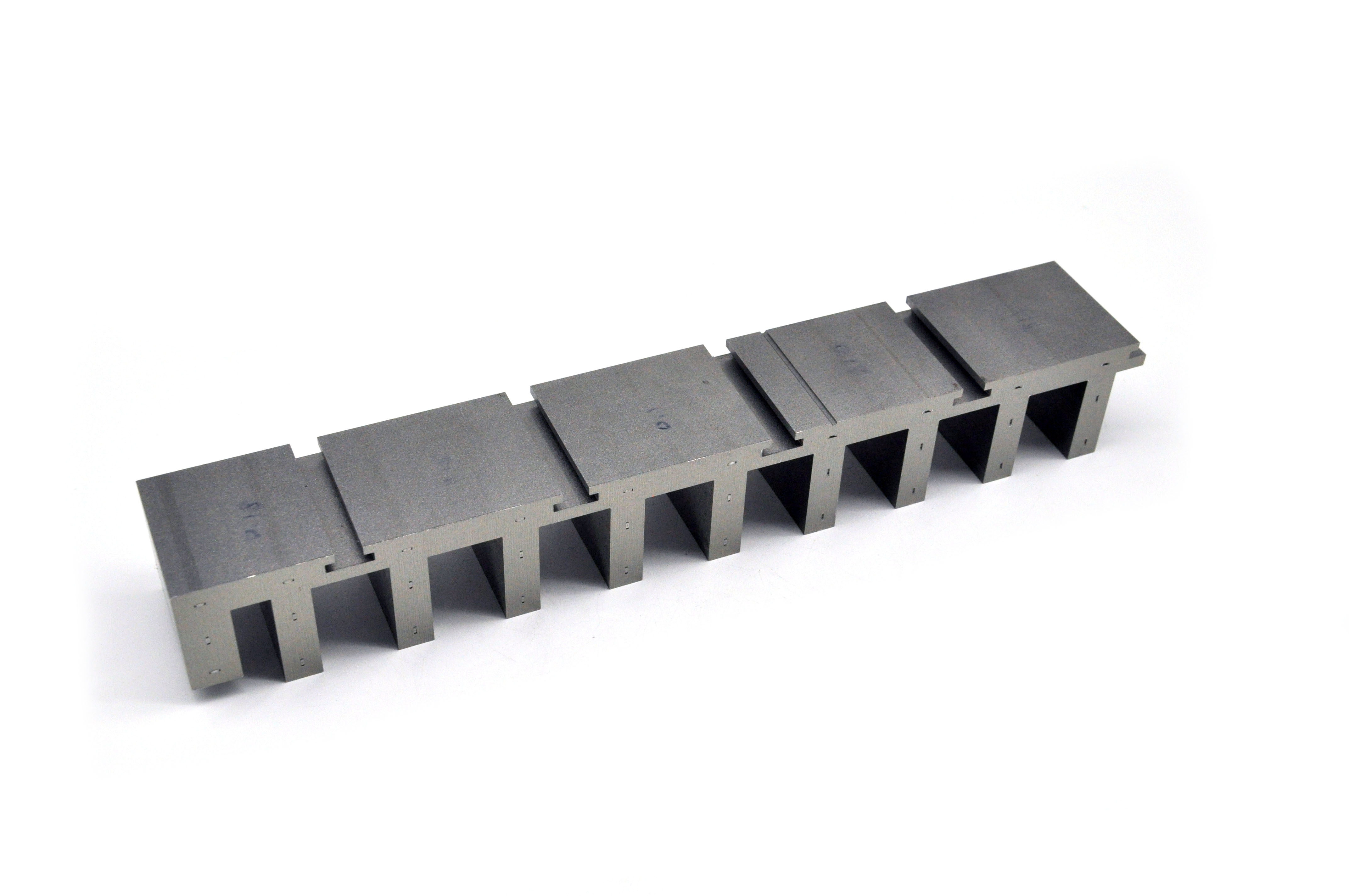

Linear Motor Stator Core Manufacturing
Unlike traditional rotary motors, linear motors require specialized magnetic structures to generate direct linear force.
YUMA manufactures linear motor stator cores with:
● Precision lamination stacking
● Customized magnetic structures
● Stable dimensional accuracy
● High-quality surface processing
Supporting customers developing advanced motion systems.
Applications of Linear Motor Core
Semiconductor & Electronics Manufacturing
Linear motors are commonly used in semiconductor equipment requiring:
● Nanometer-level positioning
● High-speed movement
● Low vibration operation
Examples:
Industrial Automation Systems
For automated production lines, linear motor cores support:
● Fast positioning
● Continuous operation
● High repeatability
Applications include:
Medical & Laboratory Equipment
Linear motors are used in equipment requiring smooth and accurate movement:
● Medical imaging systems
● Laboratory automation
● Testing equipment
Linear Motor Core Manufacturing Capability
YUMA provides complete manufacturing support:
| Process | Capability |
|---|
| Tooling | Progressive die development |
| Stamping | Precision lamination stamping |
| Assembly | Core stacking |
| Quality Control | Dimensional inspection |
| Production | Prototype & volume manufacturing |
Get Your Custom Linear Motor Core Solution
Need a reliable linear motor core supplier for your precision motion applications? Contact YUMA for customized lamination design, prototype development, and mass production support.
