Permanent magnet cores are widely used in industrial automation, automotive, medical, and electronic devices. In the automotive sector, permanent magnet cores are used in the drive motors of new energy vehicles to improve motor efficiency and reduce energy consumption. In the medical field, they are essential components of MRI equipment, providing critical support for medical diagnostics. Additionally, permanent magnet cores are used in various sensors and actuators to provide precise control for automated equipment.
Advantages of Permanent magnet motor cores
High efficiency: Precision laminations help reduce core loss and improve motor performance.
Compact design: Supports high torque and power density within limited installation space.
High accuracy: Consistent dimensions help maintain a stable stator-rotor air gap.
Custom structures: Available for PMSM, IPM and SPM motor designs.
Low noise and vibration: Controlled stamping and stacking improve operating stability.
Flexible assembly: Loose, interlocked, welded, bonded and interlock-free cores are available.
Prototype to mass production: Supports sample development, tooling, precision stamping and volume manufacturing.
Applications of Permanent magnet motor cores
Permanent magnet motor cores are widely used in applications requiring high efficiency, compact size and precise control, including:
Electric vehicles and hybrid vehicles
Industrial servo motors and automation equipment
Robots and robotic joint systems
Pumps, compressors and HVAC equipment
Power tools and garden equipment
Household appliances
Medical and laboratory equipment
Yuma Precision can customize PMSM stator cores, IPM rotor cores and SPM rotor laminations according to different motor designs and operating requirements.

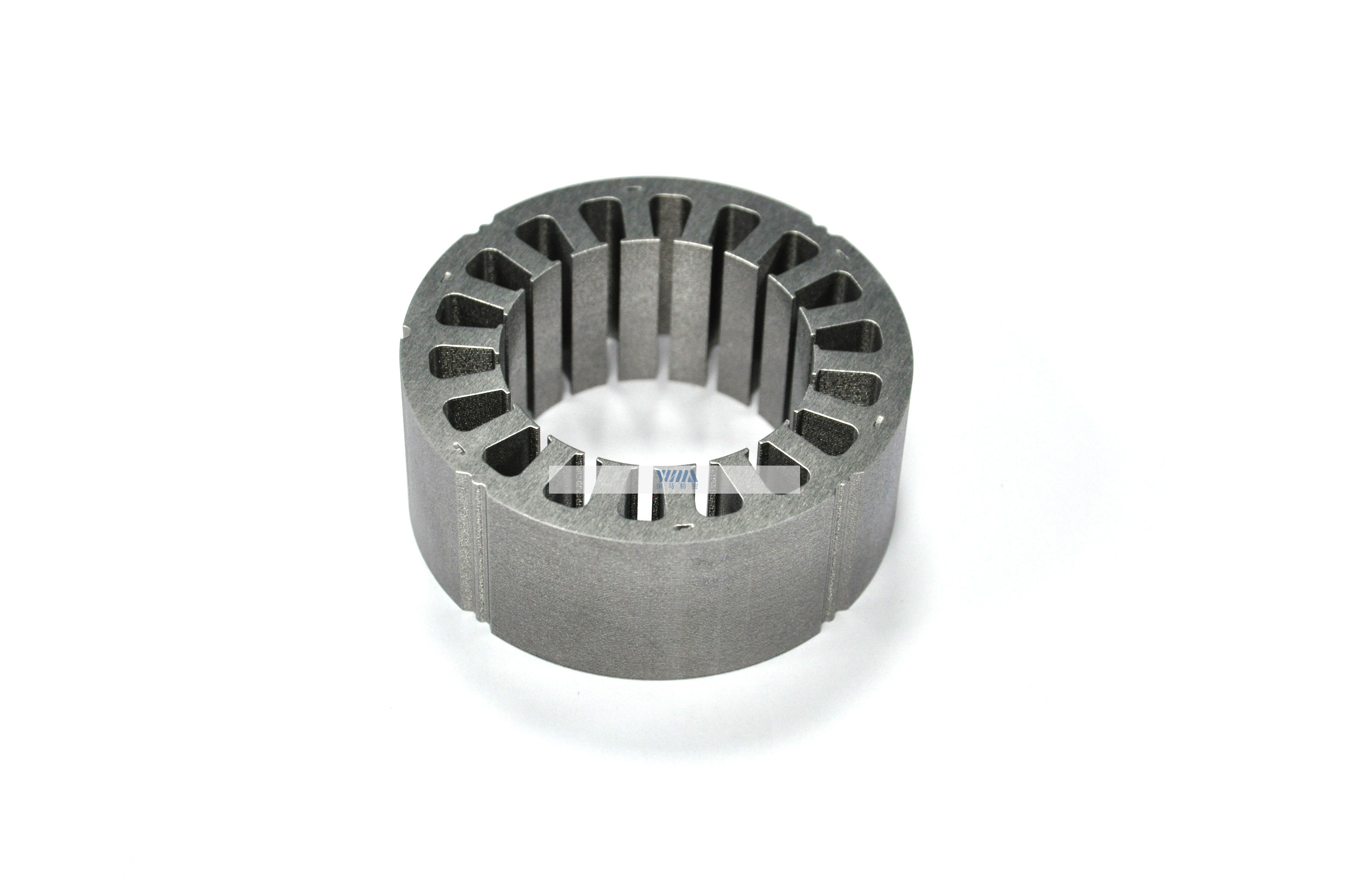

PMSM Motor Core Solutions
Permanent magnet synchronous motors are widely selected for applications requiring compact motor dimensions, controlled torque and efficient operation.
Yuma Precision produces customized PMSM motor cores for different motor sizes, speed ranges and power requirements. The stator slot structure and rotor magnet arrangement can be developed according to the customer’s electromagnetic design.
Our PMSM lamination solutions can support:
Industrial servo motors
Robotic joint motors
Electric vehicle drive motors
Electric pumps and compressors
Industrial automation systems
Power tools
HVAC equipment
Household appliances
Medical device drive systems
Compact high-speed motors
The final lamination design should be confirmed according to the required torque, rated speed, maximum speed, voltage, cooling method and operating cycle.
Custom Permanent Magnet Motor Core Specifications
Permanent magnet motor laminations are manufactured according to customer drawings rather than fixed standard sizes.
| Customization Item | Available Options |
|---|
| Motor structure | PMSM, IPM, SPM or other permanent magnet motor |
| Core components | Stator laminations, rotor laminations or matched core set |
| Stator design | Custom diameter, slot number, tooth and yoke geometry |
| Rotor design | Custom pole number, magnet pockets, bridges and shaft hole |
| Material | Electrical steel selected according to project requirements |
| Lamination thickness | Customized according to speed and performance targets |
| Stack height | Custom stack length and dimensional tolerance |
| Rotor arrangement | Interior or surface permanent magnet configuration |
| Skew structure | Straight, skewed or segmented design where applicable |
| Core connection | Loose, interlocked, welded or bonded |
| Tooling | Laser prototype, proofing die, engineering die or progressive die |
| Order stage | Prototype, small batch or mass production |
Request a Permanent Magnet Motor Core Quote
Send Yuma Precision your stator and rotor drawings, material specifications, motor parameters and estimated production volume.
Our engineering team will evaluate the lamination design, magnet pocket structure, tooling method, core connection process and manufacturing requirements to provide a customized permanent magnet motor core solution.
